| Max. output power (kW): | 165 |
| Rated output power (kW): | 150 |
| Rated current (A): | 216 |
| Max. PV power (kW): | 120/180/240 |
| MPPT module quantity: | 2/3/4 |
| Dimension W*D*H (mm): | 1,200*800*2,050 |
| إبراز: | 150kW smart microgrid inverter,165kVA capacity inverter,quad MPPT solar inverter,165kVA capacity inverter,quad MPPT solar inverter |

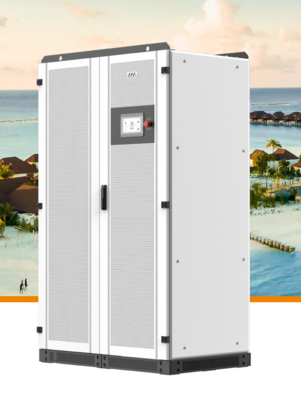

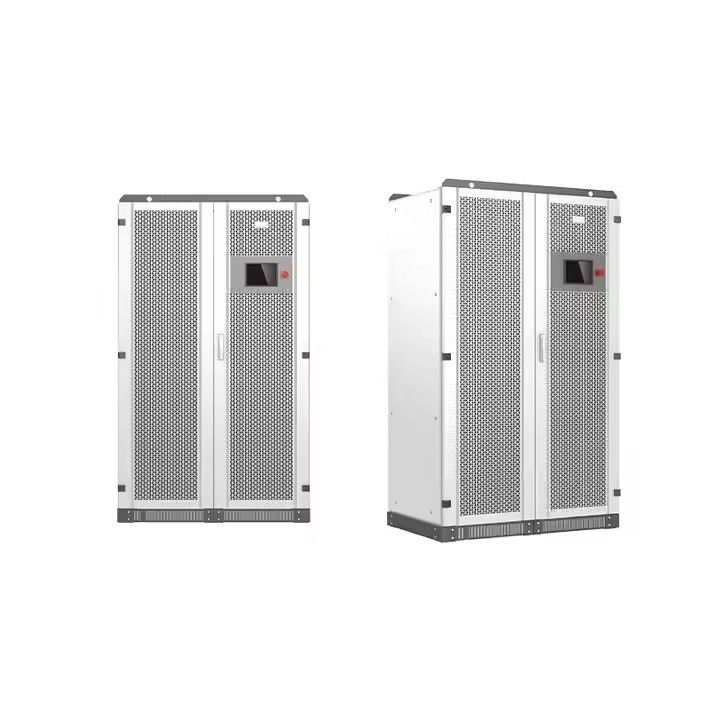

This 150kW three-phase hybrid inverter represents the pinnacle of commercial-scale energy management, combining ultra-high power density with advanced grid intelligence. Designed as the central controller for campus microgrids and industrial parks, it delivers 165kVA peak output while supporting quad MPPT tracking for maximum solar harvest.
150kW continuous output (165kVA peak)
Powers mid-sized factories, hospital complexes, or 150+ residential units with utility-grade three-phase power.
120% short-term overload (180kW for 1 minute) handles heavy industrial equipment startups.
Quad MPPT inputs (1,000V max PV voltage)
Four independent trackers with 180-240kW PV input capacity, enabling:
Mixed-orientation solar arrays (east/west/north-south)
Dual-voltage string configurations (600V + 800V systems)
420-850V MPPT range with 99.6% tracking efficiency.
420-850V ultra-high voltage battery support
Direct integration with 800V lithium systems, eliminating DC-DC conversion losses.
165kW charging power refills 1MWh battery banks in 6 hours.
Advanced grid-forming capabilities
Black start functionality to reboot entire microgrids.
<3% voltage regulation in island mode - critical for precision manufacturing.
-30°C to 55°C operational range
Cold-weather package maintains full output at -25°C.
Desert-rated cooling sustains 100% capacity up to 45°C.
IP20 enclosure with seismic reinforcement
8mm steel frame withstands 0.5g seismic activity (Zone 4 compliance).
Corrosion-resistant coating for coastal/offshore installations.
Central controller functionality
Manages up to 12 parallel units (1.8MW total) with <1% load imbalance.
Predictive load forecasting using AI algorithms.
Dual-grid operation
Simultaneous connection to main grid + backup diesel generators.
Automatic fuel optimization reduces generator runtime by 40%.
| Category | Parameter | Value | Industrial Advantage |
|---|---|---|---|
| AC Output | Rated Power | 150kW | Replaces 500kVA diesel gensets |
| Voltage Stability | ±1% | Meets semiconductor fab requirements | |
| PV Input | Max. Array Power | 240kW | 50% more than 100kW model |
| Battery | Cycle Efficiency | 96.8% | Highest in class |
| Physical | Dimensions (W×D×H) | 1,200×800×2,050mm | 20% denser than competitors |
| Weight | 1,250-1,310kg | Requires crane installation |
IEC 62109-1/2: Enhanced safety for megawatt-scale systems
IEEE 1547-2018: Full grid-support functionality
EN 50549-1: European grid compliance
University Campuses
Manages 500kW solar + 2MWh storage microgrid
Reduces energy costs by 60% via TOU optimization
Industrial Parks
<20ms transition during grid failures
Participates in wholesale energy markets
Military Bases
EMP-hardened communication ports
100% energy independence capability
