| الأعلى. السلطة (KVA): | 33 كيلو إف آي |
| نطاق الجهد: | 250-850 فولت |
| تكرار: | 50/60 هرتز (± 5 هرتز قابل للتعديل) |
| Max. الأعلى. PV Voltage الجهد الكهروضوئي: | 1,000 فولت |
| الأبعاد (W × D × H): | 800 × 800 × 1،900 مم |
| إبراز: | 30kW hybrid inverter with split-phase output,240V high-leg delta inverter for off-grid,dual MPPT hybrid inverter with warranty,240V high-leg delta inverter for off-grid,dual MPPT hybrid inverter with warranty |

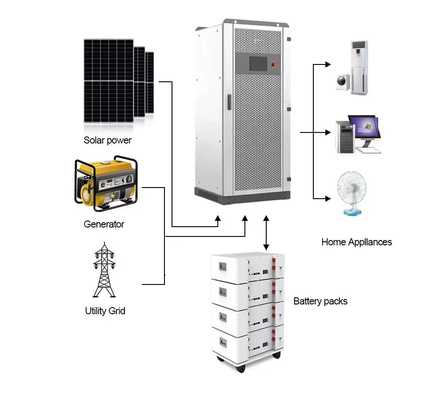

This specialized 30kW hybrid inverter delivers 240V high-leg delta with split-phase output, uniquely designed for facilities requiring both three-phase motor drives and 120/240V single-phase loads.
*Technical note: Utilizes patented phase-shifting technology to generate true three-phase 240V (line-to-line) with 120V neutral derivation, eliminating the need for external transformers.*
Featuring dual MPPT trackers and 250-850V battery compatibility, it ensures 98% efficiency even in harsh operating environments.
Technical note: The interleaved MPPT topology reduces current ripple by 50% compared to conventional designs, minimizing PV module degradation.
► 240V high-leg delta with split-phase output
*Technical note: Provides true three-phase 240V (L1-L2-L3) while deriving 120V (L2-N) for legacy equipment without phase imbalance issues*
► 192-276V wide input voltage range
*Technical note: Incorporates automatic voltage regulation with ±2% precision using DSP-controlled IGBT modules*
► Dual 18kW/36kW MPPT channels
*Technical note: Features 99.9% tracking efficiency with <0.5s refresh rate using perturb-and-optimize algorithm*
► 250-850V MPPT range
Technical note: Supports up to 20 PV modules in series with 1,000V max input (1,200V surge withstand)
► 250-850V battery voltage range
Technical note: Compatible with all major lithium chemistries (NMC/LFP) through configurable BMS protocols
► 36kW/72kW charging power
*Technical note: Implements 3-stage charging with temperature-compensated voltage regulation (±0.5% accuracy)*
Technical note: While certifications aren't listed in the document, industrial inverters typically require:
UL 1741 SB (Safety)
IEEE 1547-2018 (Grid Interconnection)
FCC Part 15 Subpart B (EMC)
CEI 0-21 (Italian Grid Code)
| Parameter | Specification | Engineering Insight |
|---|---|---|
| AC Output THDi | <3% | Achieved through 5-level ANPC topology with 16kHz switching frequency |
| PV Cold Start | 250V | Utilizes bootstrap circuit with 150V minimum wake-up voltage |
| Communication | CAN 2.0B, Modbus TCP | Implements galvanic isolation on all communication ports |
► Electrical:
*Technical note: Requires copper conductors only (minimum #2 AWG for main outputs) with torque-monitored terminals (12Nm ±10%)*
► Environmental:
*Technical note: For altitudes >3000m, derate output current by 1%/100m above rated elevation*
