| الطاقة القصوى (Pmax): | 705 واط |
| أقصى جهد كهربائي (Vmp): | 40.27 فولت |
| أقصى تيار للطاقة (إمب): | 17.51 أ |
| تيار الدائرة القصيرة (Isc): | 18.42 أ |
| الأبعاد (L × W × H): | 2384 × 1303 × 33 ملم |
| وزن: | 38.3 كجم |
| إبراز: | 705W bifacial solar panel,monocrystalline solar panel 132-cell,1500V TOPCON solar module,monocrystalline solar panel 132-cell,1500V TOPCON solar module |

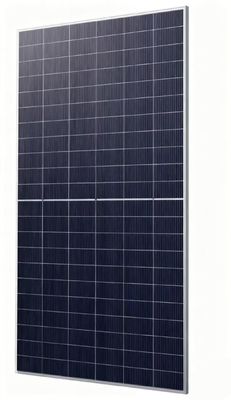

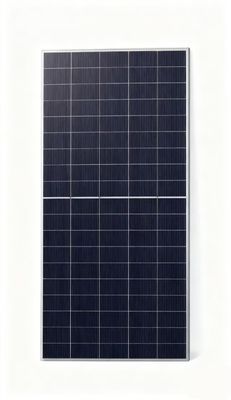

705W Bifacial Dual Glass Monocrystalline Solar Module: Precision Engineering for Optimal Performance
Meet the 705W Bifacial Dual Glass Solar Module - a meticulously engineered solution that represents the perfect balance between advanced solar technology and practical application needs. This module stands out with its precise power rating of 705W, making it an ideal choice for projects requiring optimized system sizing and predictable energy output. Unlike standard panels, this module features sophisticated bifacial technology combined with premium dual-glass construction, delivering not just superior initial performance but also long-term reliability that ensures consistent energy production year after year.
The module's exceptional value proposition begins with its precision-tuned 705W power output, specifically designed to provide optimal compatibility with modern string inverters and system designs. This carefully calibrated rating ensures maximum utilization of inverter capacity while maintaining safe operating margins. The advanced bifacial design with 80% bifaciality enables the panel to generate additional energy from rear-side illumination, potentially boosting output to 761.5W under favorable conditions with just 10% rear irradiance.
What truly sets this module apart is its optimized electrical characteristics. With a maximum power voltage of 40.27V and current of 17.51A, it offers perfect string configuration flexibility for both commercial and utility-scale installations. The module's 22.70% conversion efficiency demonstrates excellent light capture capability, while the half-cell 132-cell configuration minimizes resistance losses and enhances performance in partial shading conditions.
The construction quality reflects uncompromising standards with dual-layer glass protection featuring 2.0mm anti-reflective front glass and 2.0mm heat-strengthened rear glass. This construction not only provides superior mechanical strength but also creates a completely hermetic environment that prevents moisture ingress and potential-induced degradation. The anodized aluminum frame adds structural integrity while providing excellent corrosion resistance, ensuring the module can withstand extreme weather conditions including 2400Pa wind loads and 5400Pa snow loads.
Key Technical Advantages:
Precision Power Rating: The 705W specification allows for optimal system design with better inverter matching and reduced oversizing requirements, maximizing system efficiency.
Enhanced Bifacial Performance: With 80% bifaciality and proven ability to generate up to 761.5W, this module delivers substantial energy gains in environments with reflective surfaces.
Superior Durability: The glass-glass construction combined with IP68 junction box and corrosion-resistant frame ensures long-term performance even in harsh environmental conditions.
Excellent Temperature Response: The low temperature coefficient of -0.29%/°C for Pmax ensures minimal power loss in high-temperature operating conditions.
Advanced Safety Features: 1500V system voltage compatibility and 35A fuse rating provide enhanced safety margins for large-scale installations.
Optimal Application Scenarios:
This 705W bifacial module excels in applications where precision engineering and reliable performance are critical:
Commercial Rooftop Systems: Perfect for corporate buildings, warehouses, and industrial facilities where space utilization and predictable ROI are important.
Utility-Scale Solar Farms: The precise power rating enables accurate energy yield predictions and optimized system design for large-scale projects.
Solar Carport Installations: Excellent for parking structures where the bifacial feature captures light reflected from vehicle surfaces and pavement.
Agricultural Solar Projects: Suitable for farming applications where the robust construction withstands outdoor elements while providing consistent energy output.
Frequently Asked Questions (FAQ):
Q: Why choose a 705W module instead of a higher wattage panel?
A: The 705W rating provides optimal balance for system design, allowing better inverter matching and often resulting in higher overall system efficiency compared to higher-wattage panels that may require system compromises.
Q: How does the bifacial performance compare to monofacial panels in real-world conditions?
A: In installations with reflective surfaces, our 705W bifacial modules typically generate 8-12% more energy than equivalent monofacial panels, significantly improving project economics.
Q: What makes the dual-glass construction superior to traditional backsheet designs?
A: Dual-glass modules demonstrate better resistance to environmental stress, lower degradation rates, and typically come with longer warranty periods due to their proven durability.
Q: Are these modules suitable for high-wind locations?
A: Yes, with 2400Pa wind load certification, these modules are engineered to withstand extreme wind conditions common in coastal and mountainous regions.
Installation and Maintenance Guidelines:
Professional installation by certified technicians is mandatory. Always consult the installation manual for specific mounting requirements and electrical specifications. Ensure proper grounding and use only compatible mounting systems. Regular visual inspections and periodic cleaning will maintain optimal performance. Avoid installation in shaded areas and ensure adequate ventilation behind the modules for proper heat dissipation.
Technical Specifications
